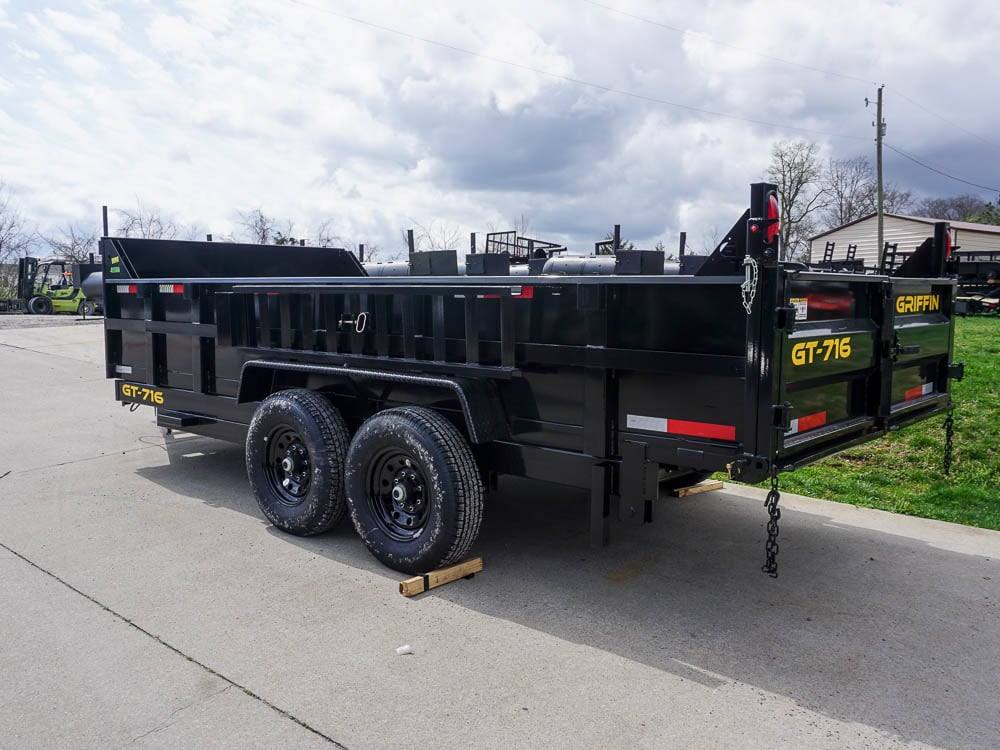

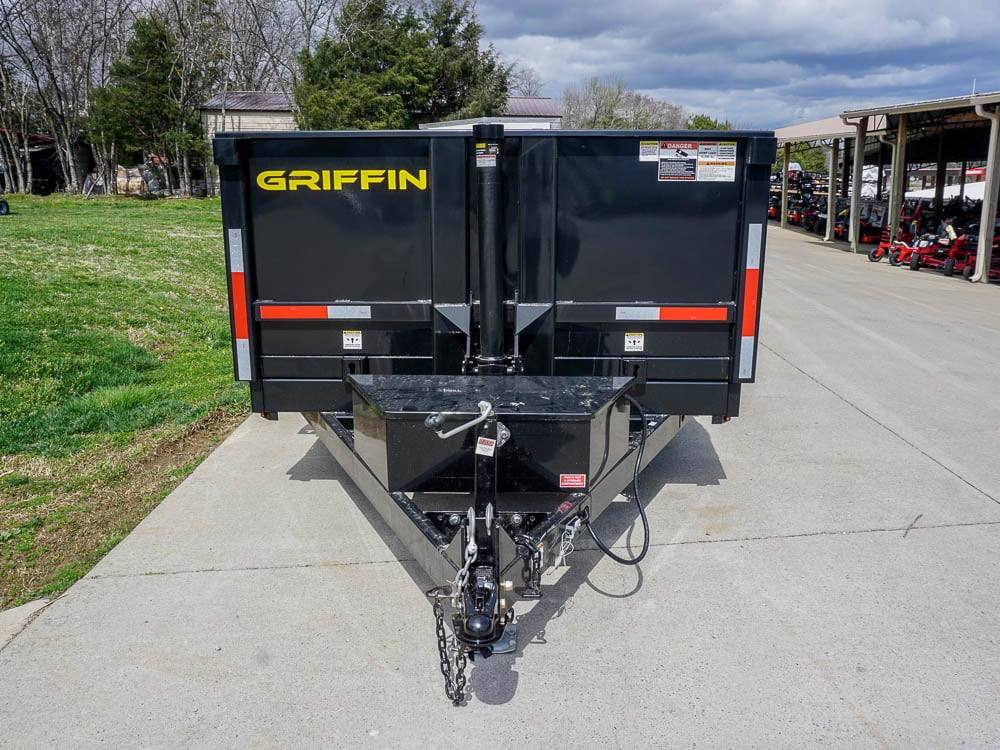

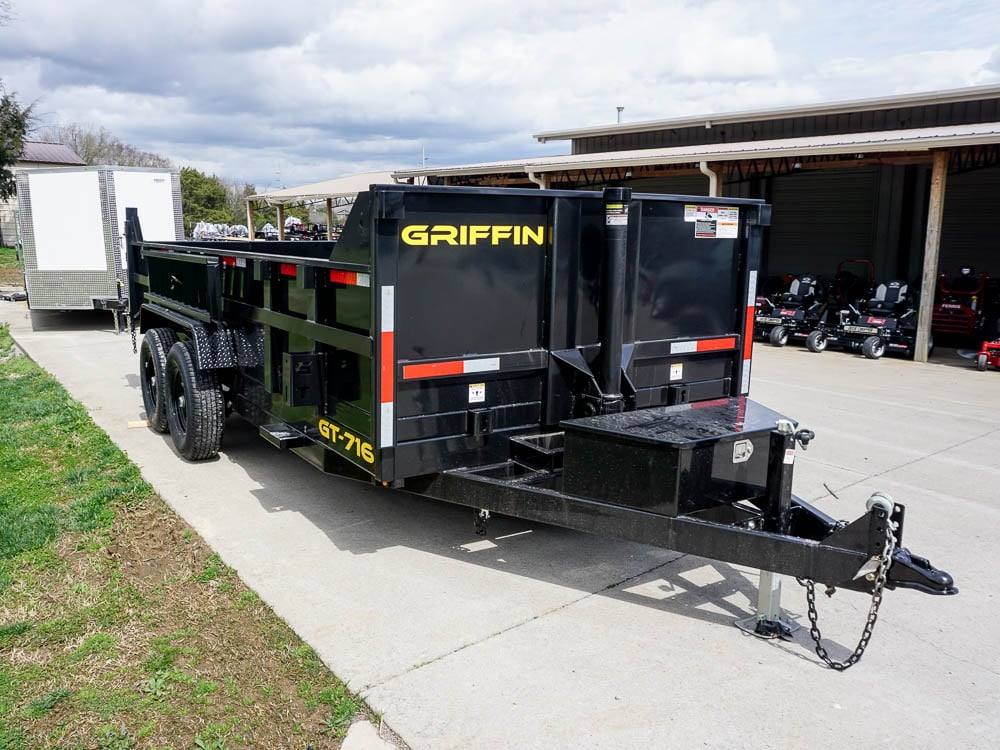

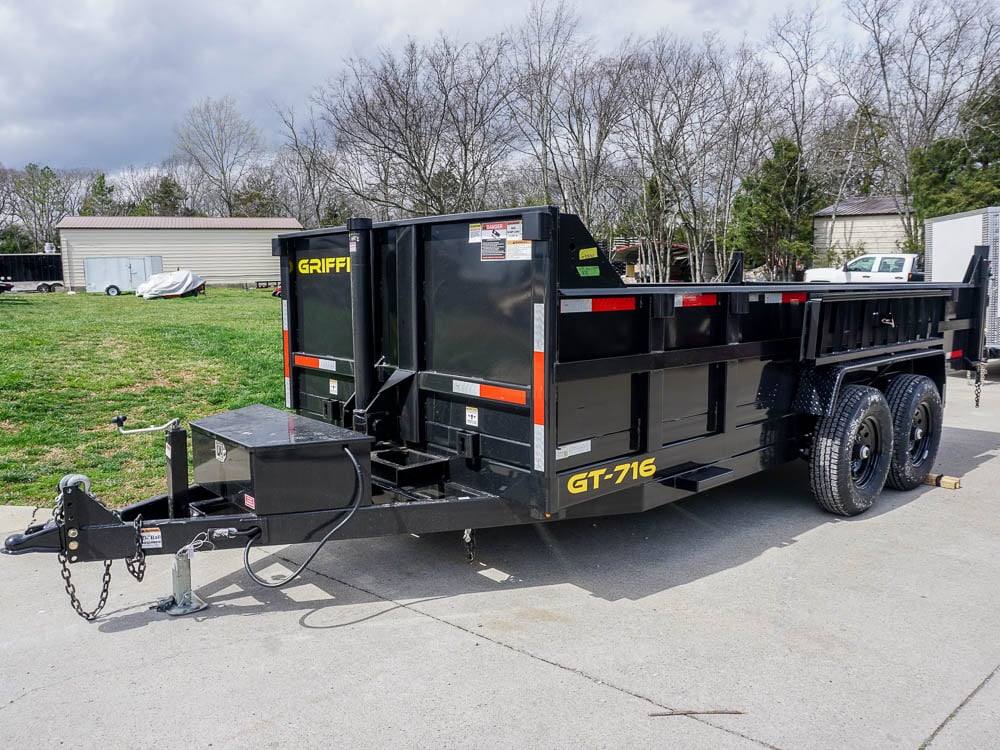

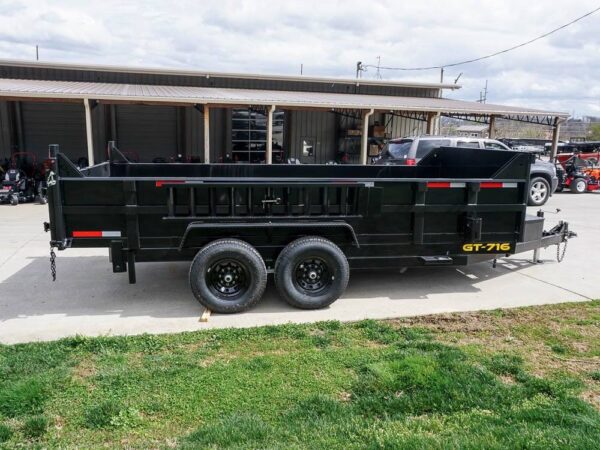

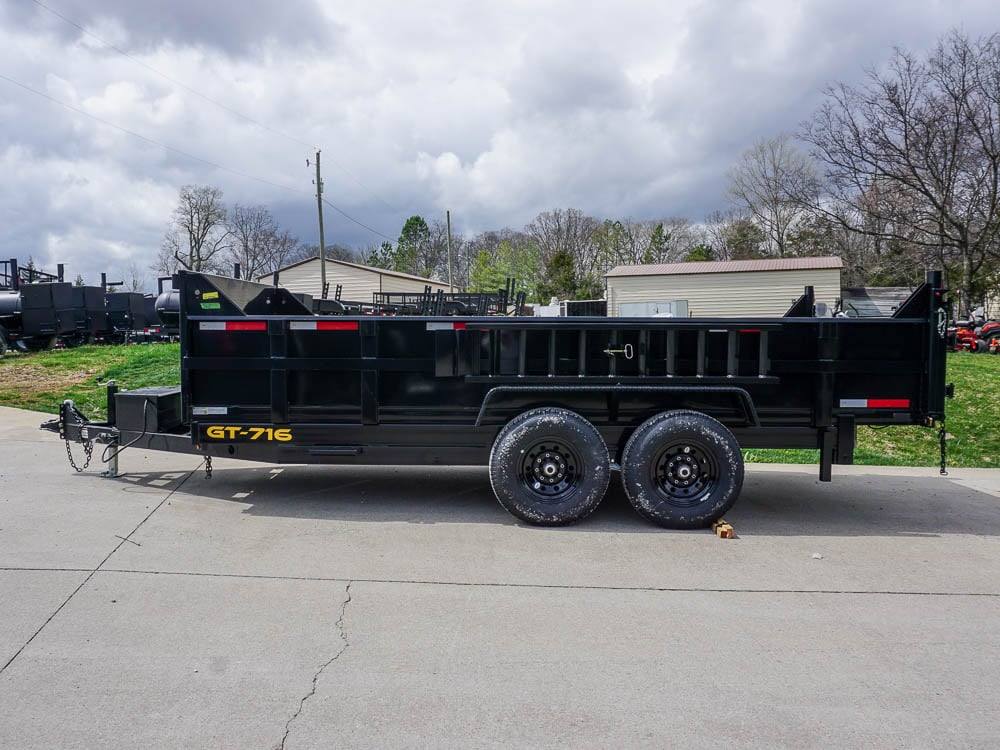

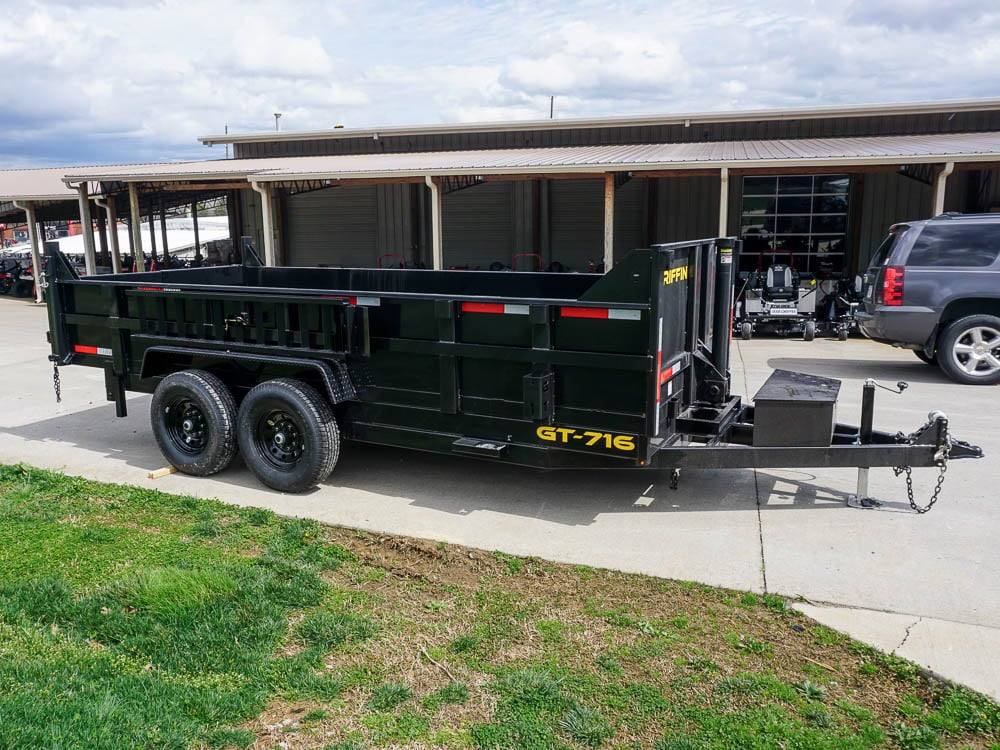

7×16 Telescopic Dump Trailer with 2ft Sides (2) 7K Axles GVWR 14K

7X16 Telescopic Dump now available at Equilhaul! Built for performance and value, this model is perfect for those needing a dump trailer with. As a 7×16 telescopic dump trailer with 2ft sides (2) 7k axles gvwr 14k, it meets the demands of both residential and commercial needs. Order now or call +1 (425) 453-7123 for fast delivery across the U.S.

7×16 Telescopic Dump Trailer with 2ft Sides (2) 7K Axles GVWR 14K

7×16 Telescopic Dump Trailer with 2ft Sides (2) 7K Axles

Free delivery only within 30 miles of Equilhaul. In-store pick-up is also available for free. Call for more options: +1 (425) 453-7123.

Features:

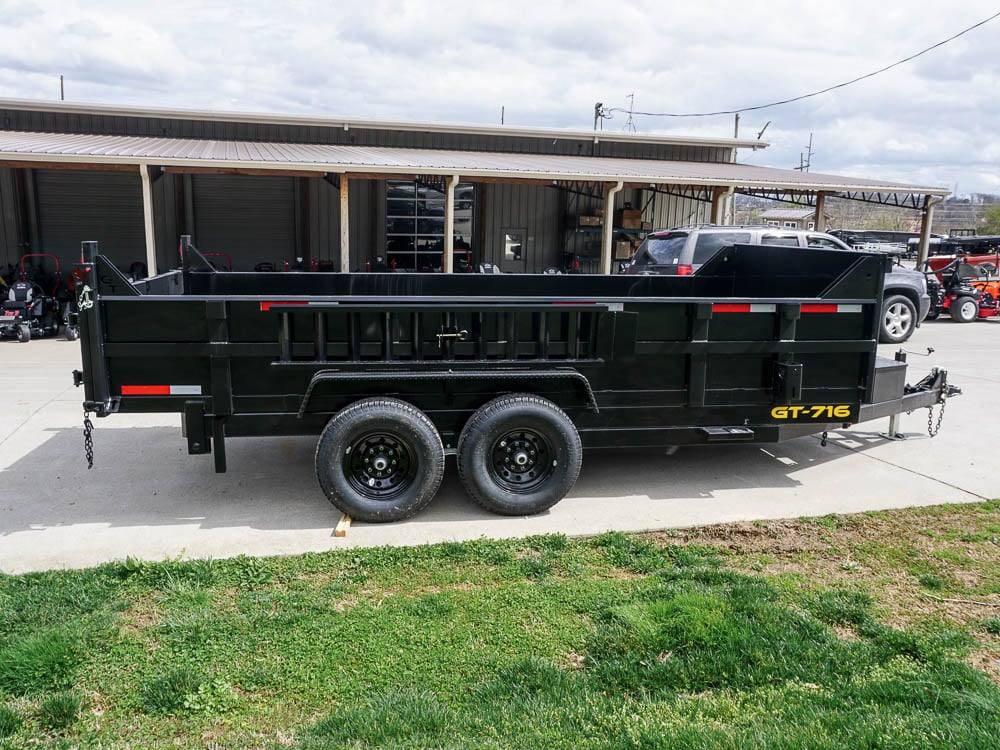

• The length of the trailer is 16 feet (192 inches), providing ample space for transporting larger loads.

• The sidewall height is 24 inches, allowing for increased depth to accommodate various materials.

• The width measures 7 feet (82.5 inches), offering a spacious loading area.

• The floor height is 29 inches, making it convenient for loading and unloading cargo.

• The coupler height stands at 18 inches, ensuring compatibility with a variety of towing vehicles.

• The cross members are constructed from 2″ x 3″ tubes, spaced 16 inches on center to enhance structural integrity.

• The wheels feature a black powder coat finish, providing durability and resistance to corrosion.

• The coupler is a 2-5/16″ adjustable coupler, which allows for flexibility in towing different vehicles.

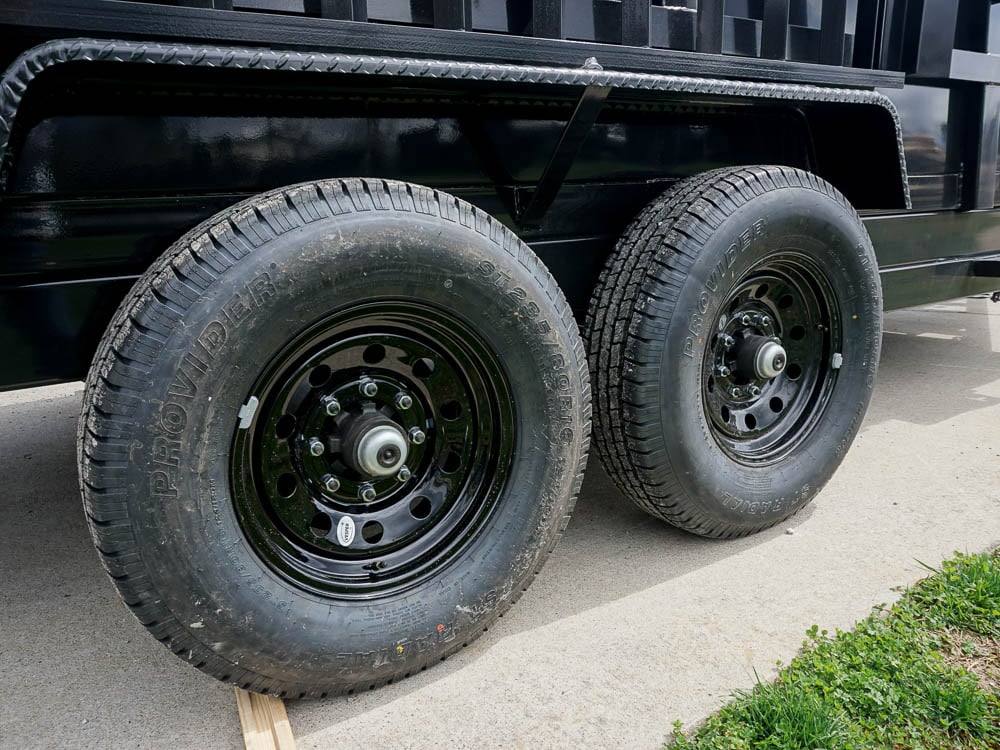

• The tires are 16-inch radial tires, designed for stability and smooth performance on the road.

• The power unit consists of a 12v DC hydraulic pump, capable of generating 3200 PSI power up and 0 PSI power down for efficient operation.

• The trailer is equipped with a standard spare tire mount, ensuring easy accessibility for the spare tire.

• The battery is an Interstate deep cycle marine battery, providing reliable power supply for the trailer’s systems.

• The ramps are 80-inch C-channel fender-mounted ramps, facilitating straightforward loading and unloading of equipment.

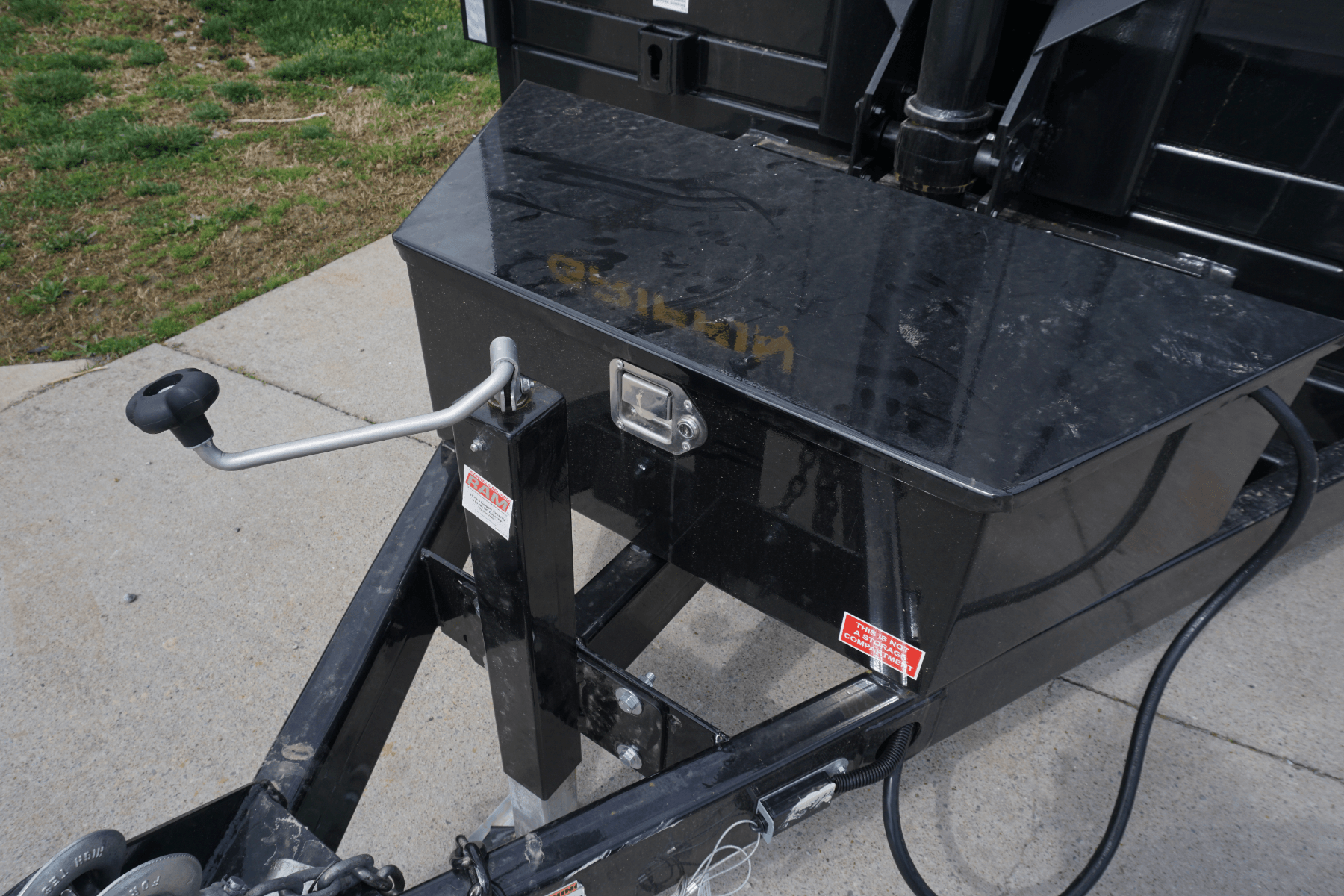

• The jack is an adjustable 7000lb top wind drop leg, allowing for easy height adjustments and stability.

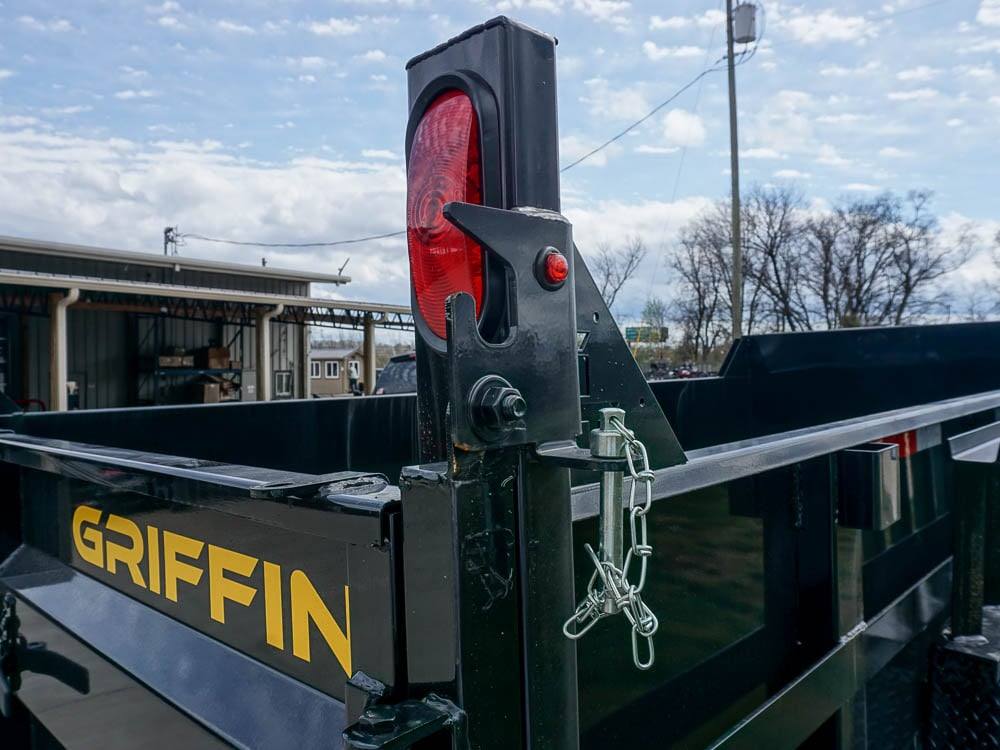

• The lighting system includes amber and red LED lights, enhancing visibility for safer operation during low-light conditions.

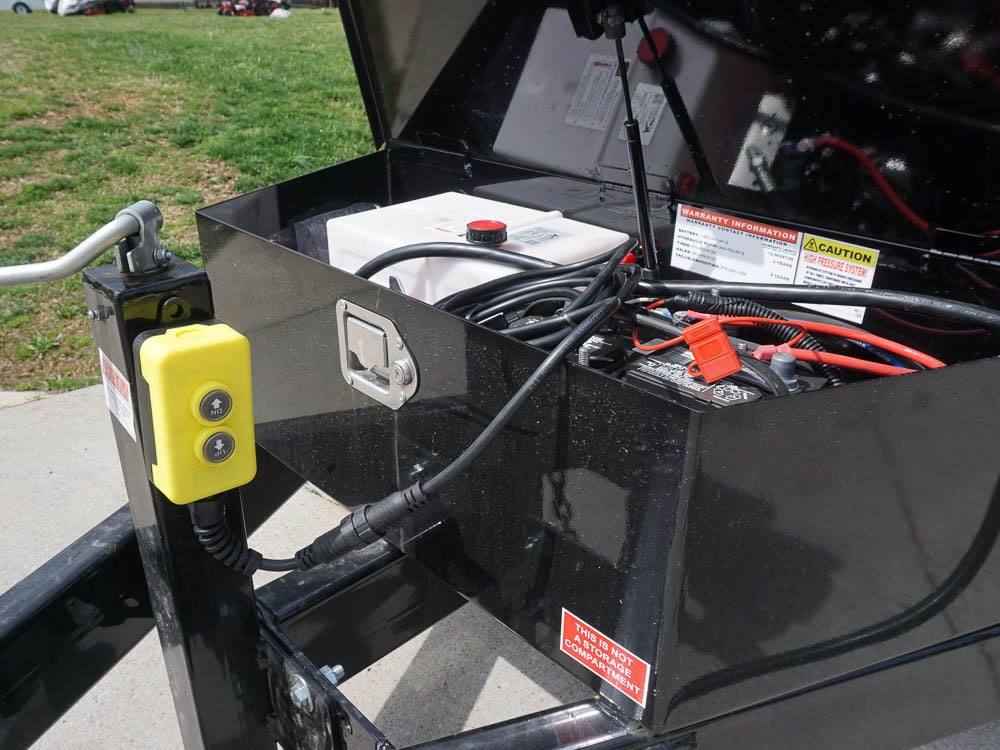

• The control box features a key lock for easy front access, ensuring security and user-friendly operation.

• The wiring harness is a 3-piece plug-and-play system, simplifying electrical connections for convenience.

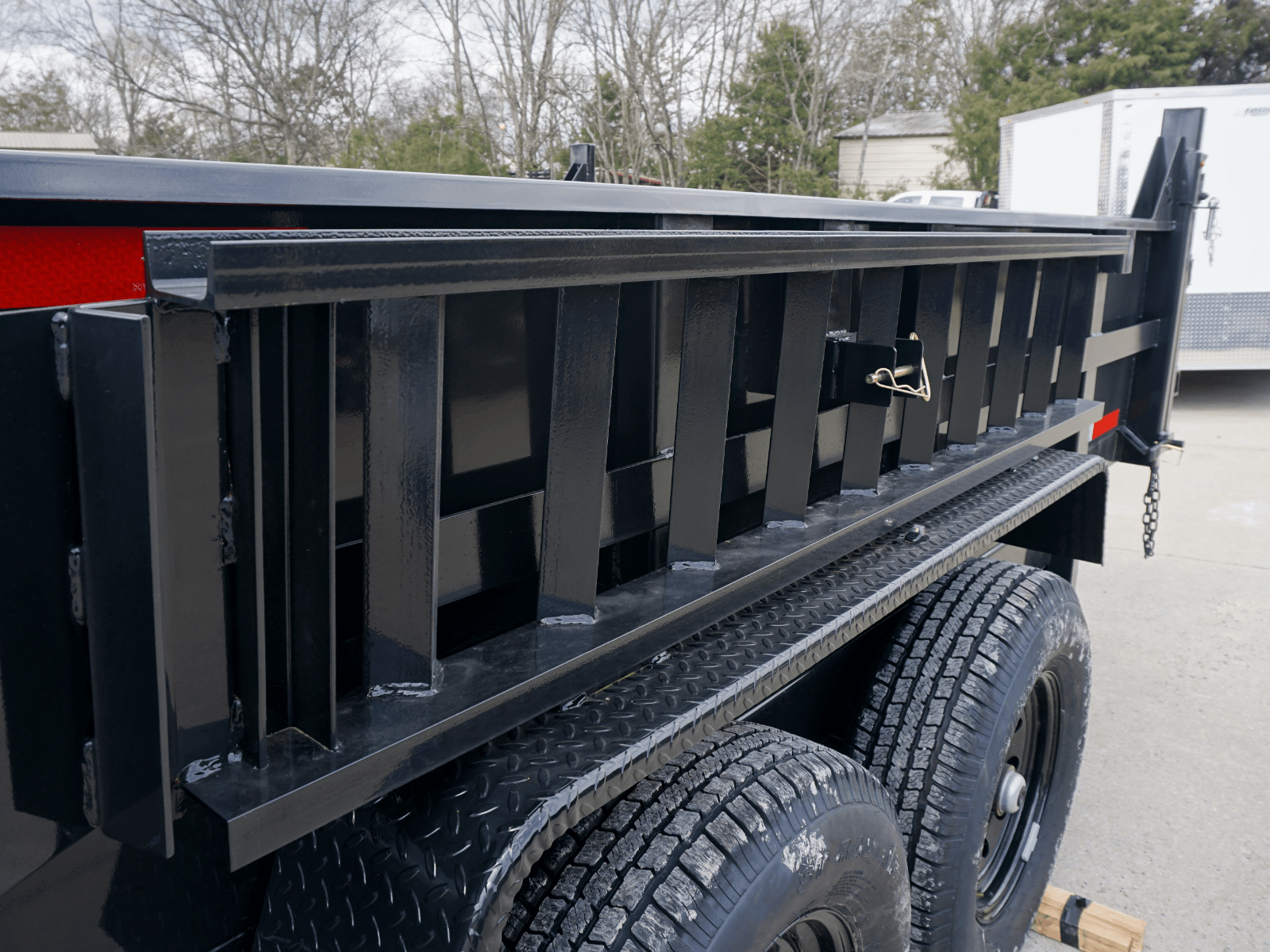

• The fenders are constructed from 14-gauge formed treadplate, providing robust protection against road debris.

• The electric plug is a 7-pin round connector, which is standard for connecting to towing vehicles.

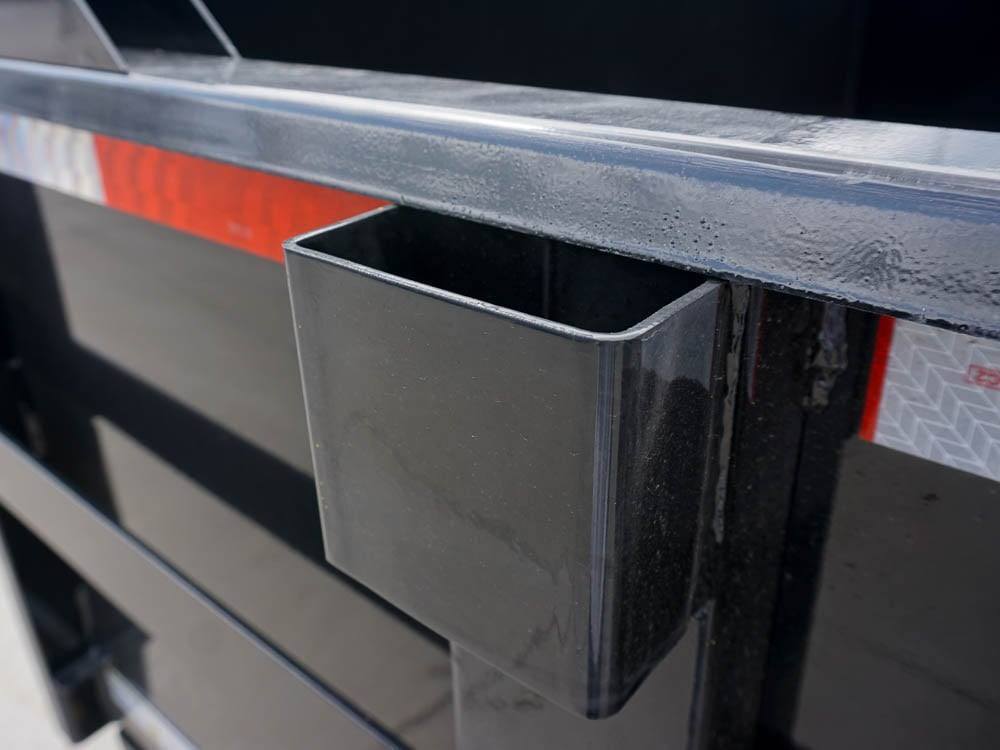

• The stake pockets are made from 2″ x 4″ tubes, offering secure tie-down points for cargo.

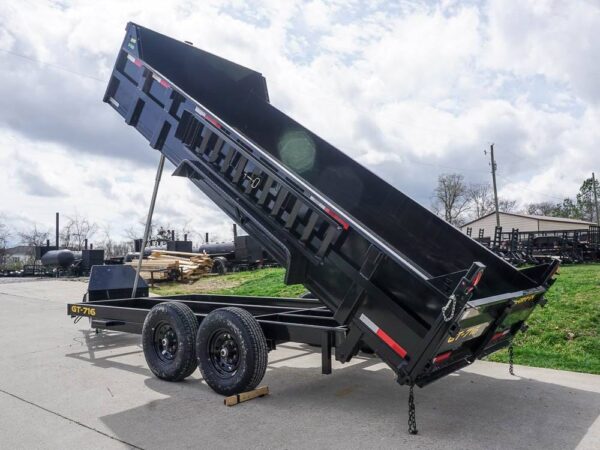

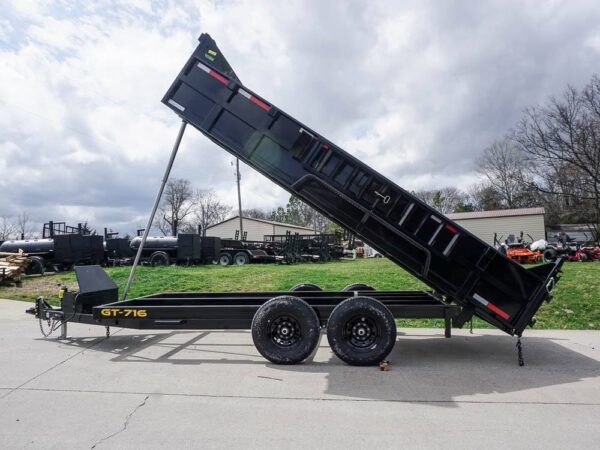

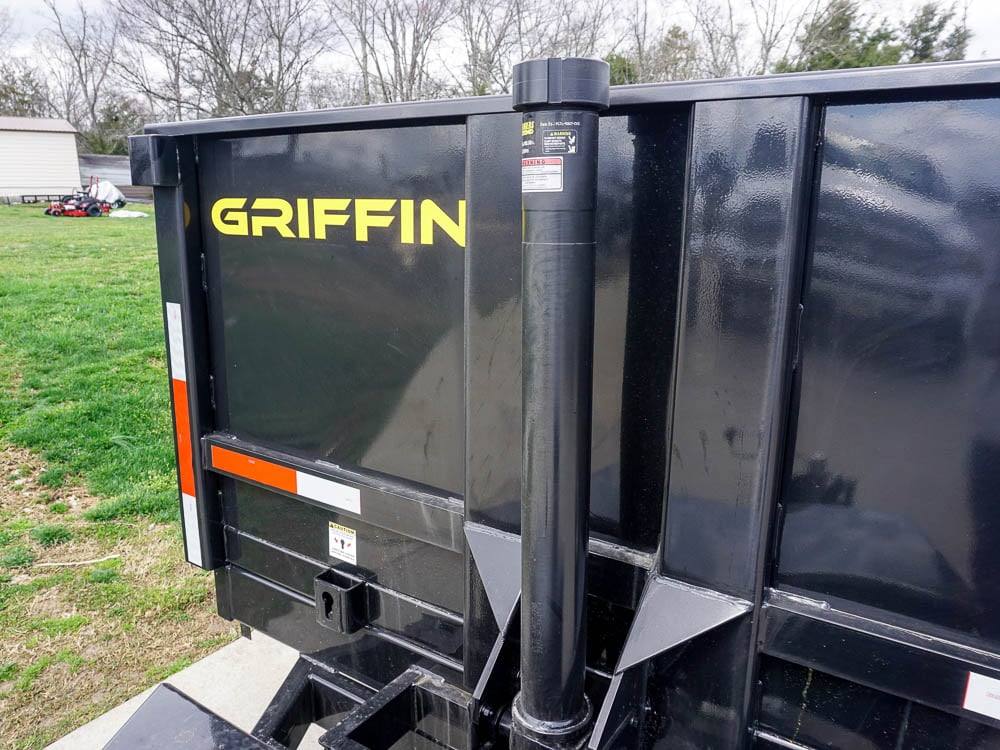

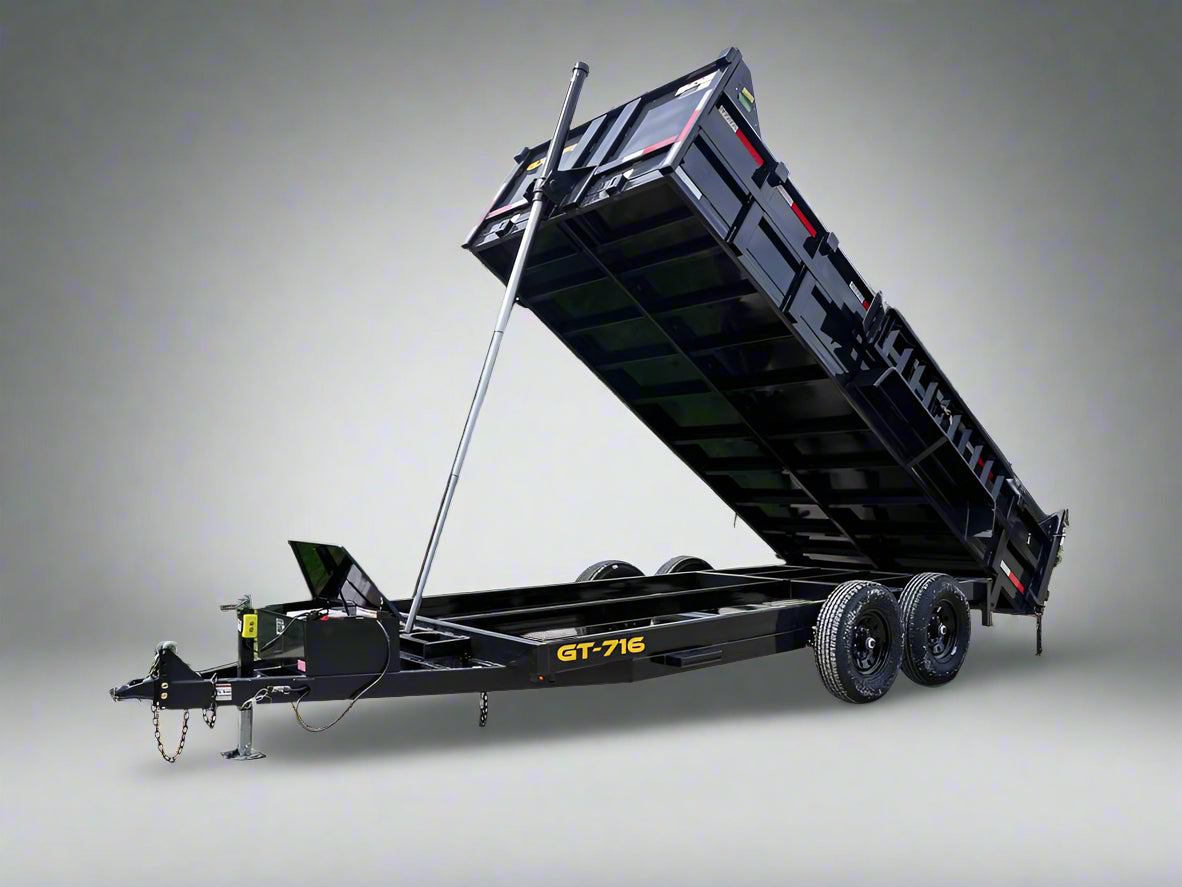

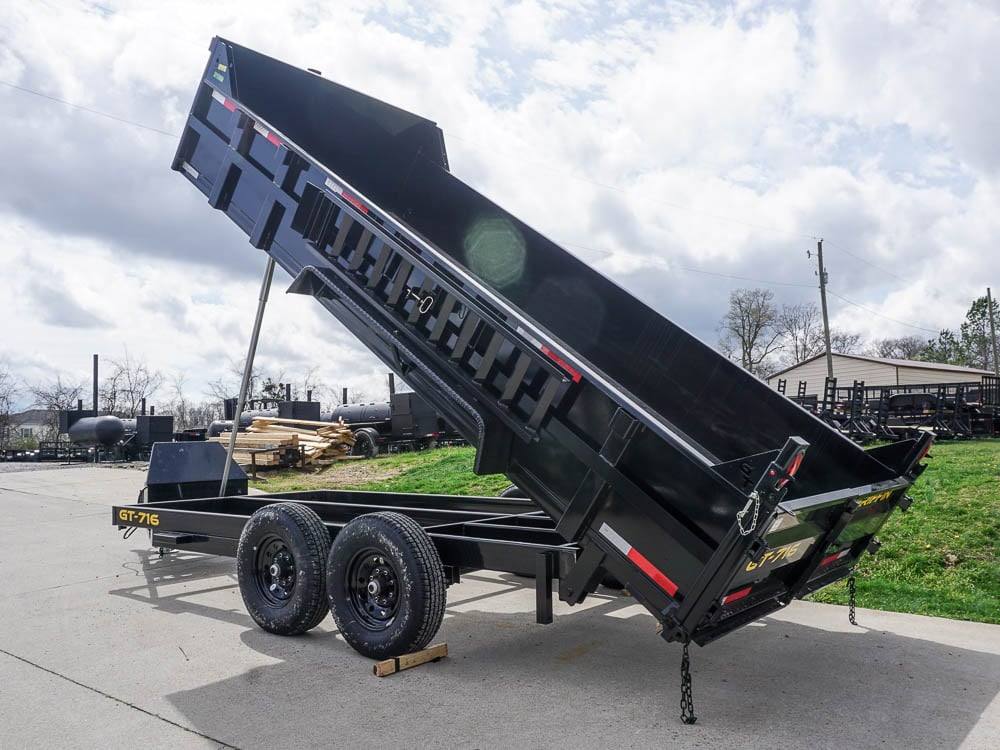

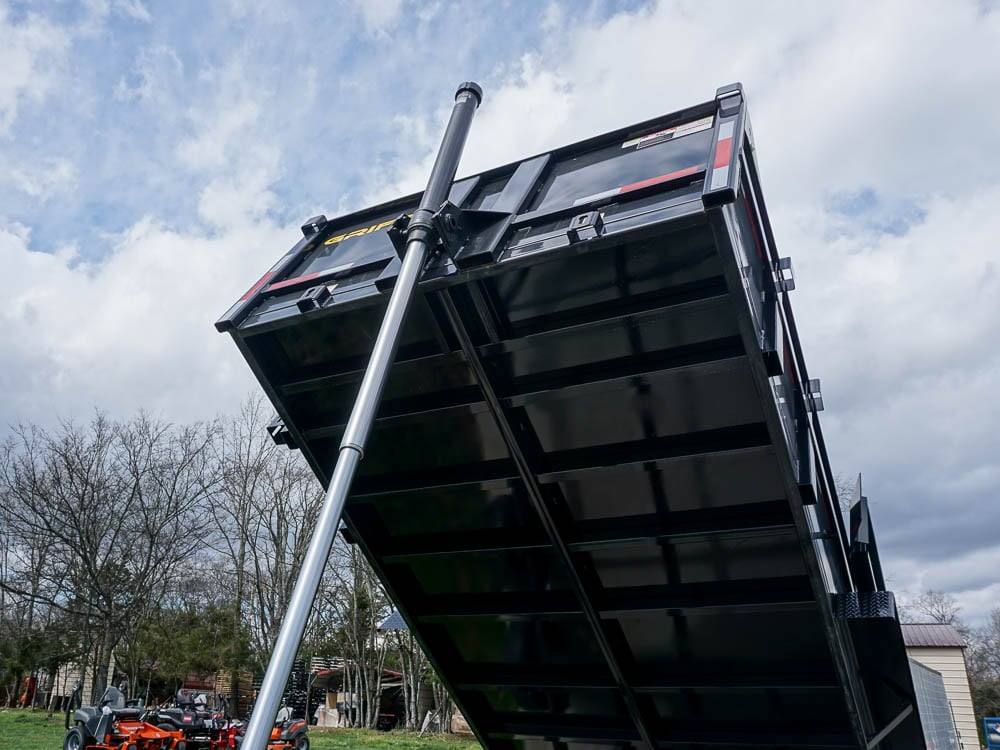

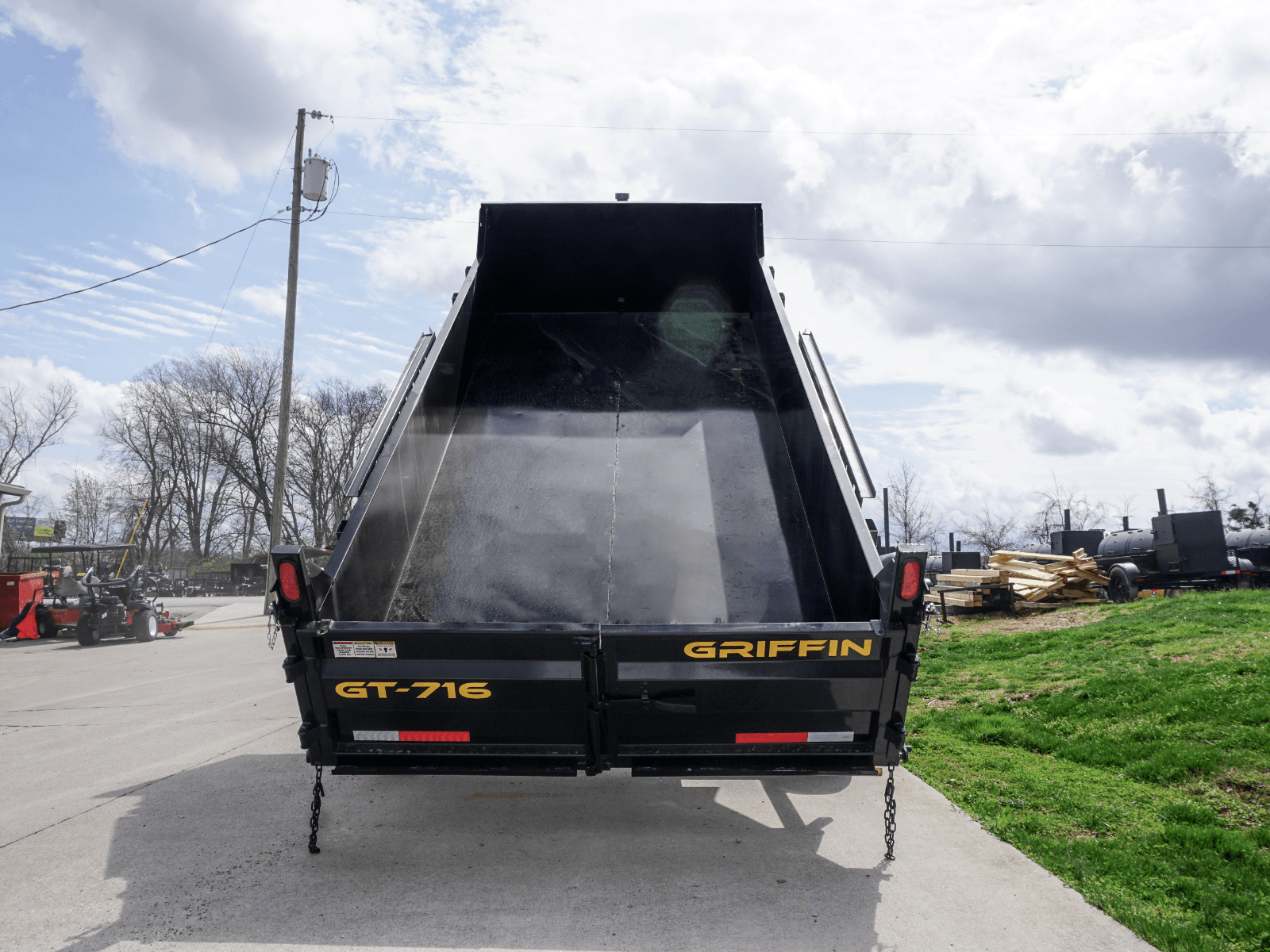

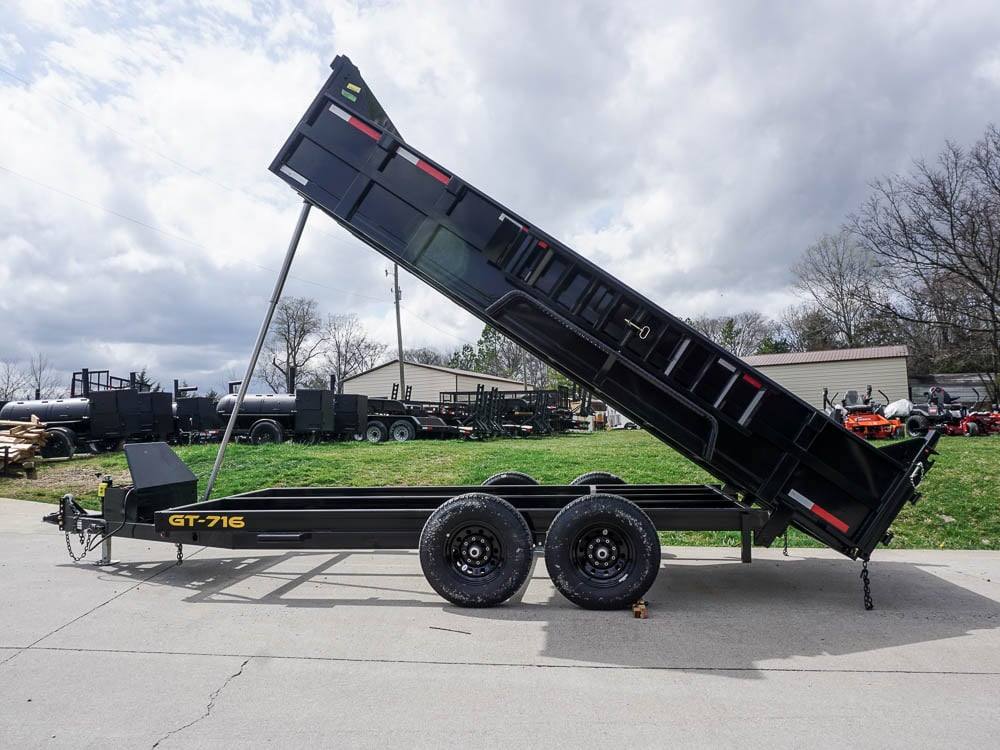

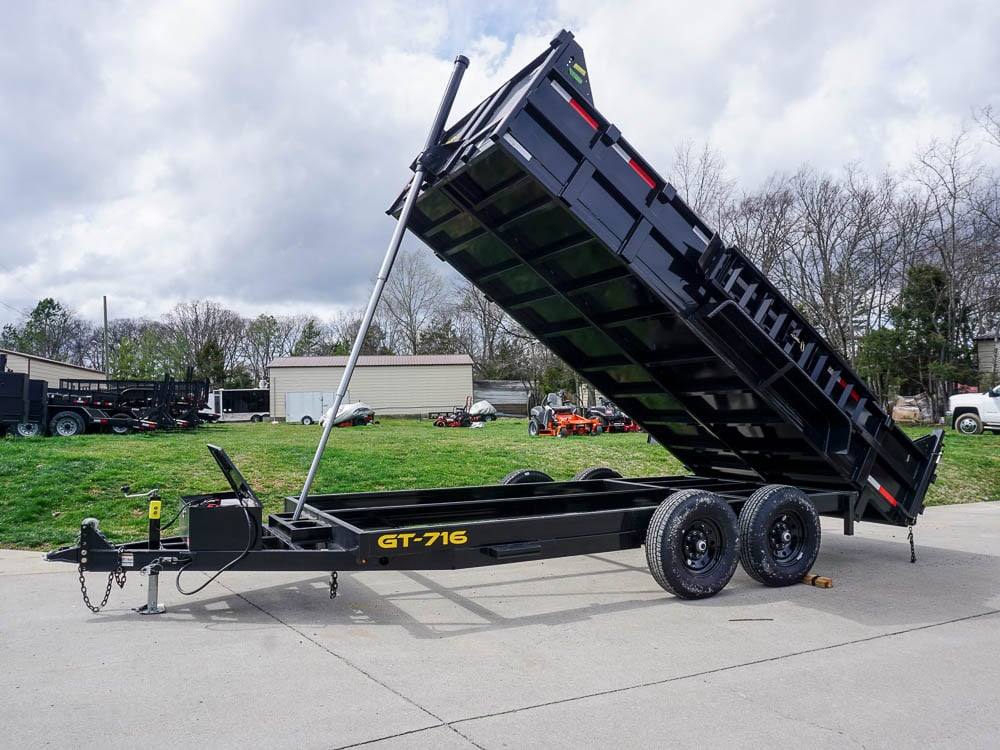

• The lift system is a 3-stage telescoping mechanism, allowing for efficient lifting capabilities.

• The gussets at the front and rear measure 2″ x 12″, providing additional strength and support for wall extensions.

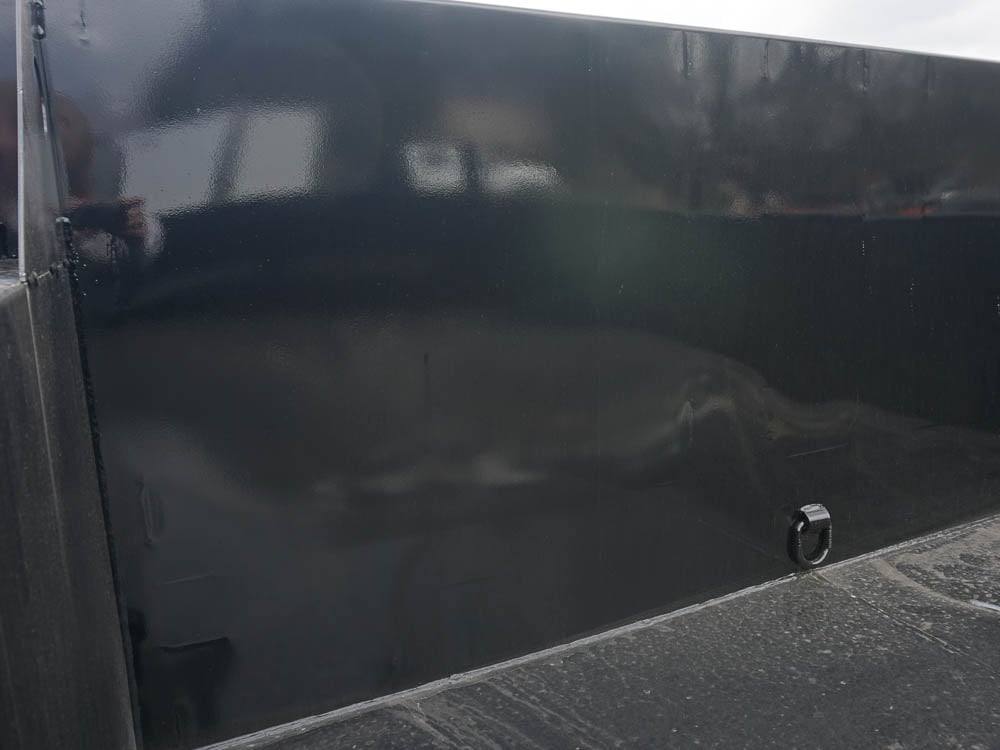

• The floor and walls are made from 10-gauge smooth steel, ensuring durability and structural integrity.

• The safety chains are equipped with two forged slip hooks, measuring 5/16″ x 35″ and rated for a 11700lb capacity, ensuring secure towing.

• The integrated tarp system is tarp kit ready, allowing for easy installation and protection of the load.

• The trailer includes five 5000lb D-rings, which are welded into the floor for secure cargo tie-down options.

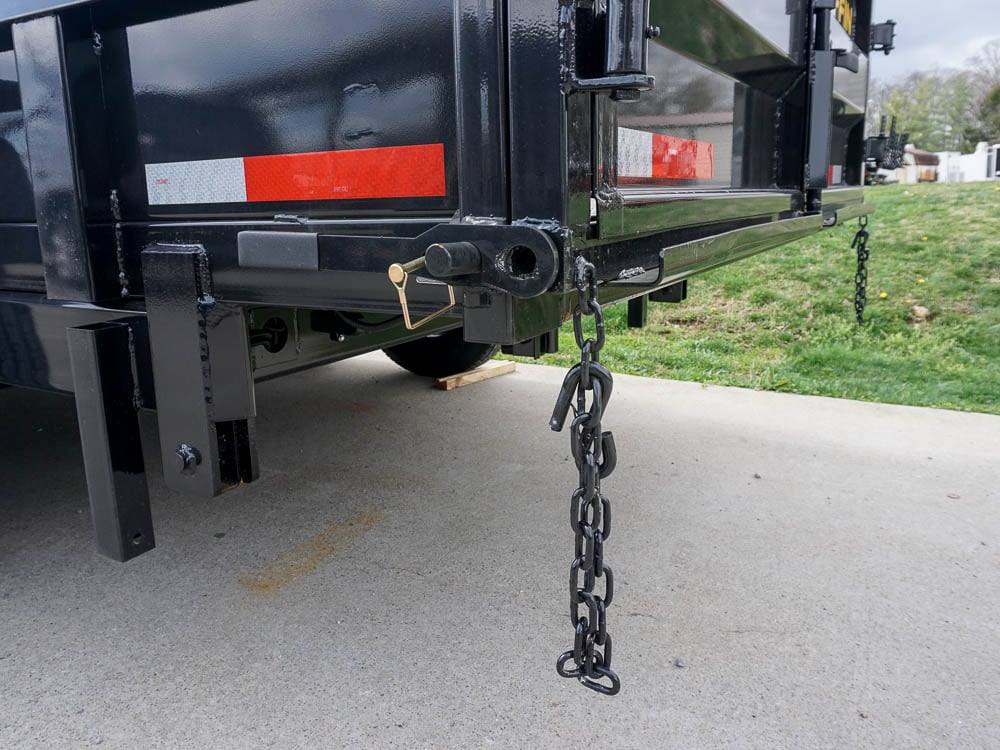

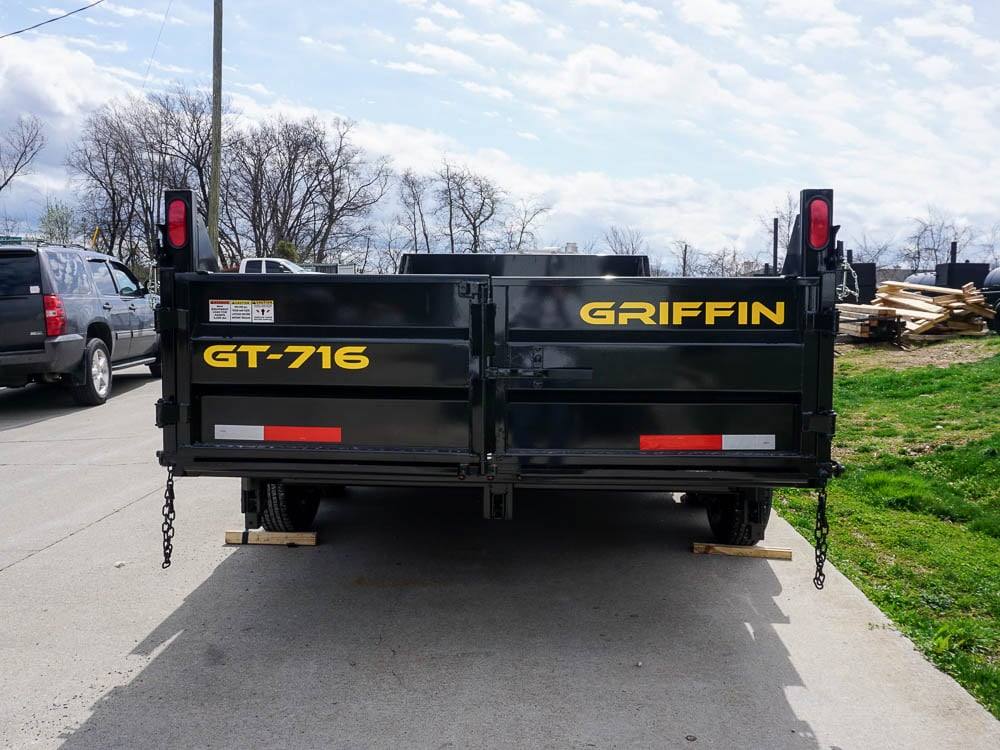

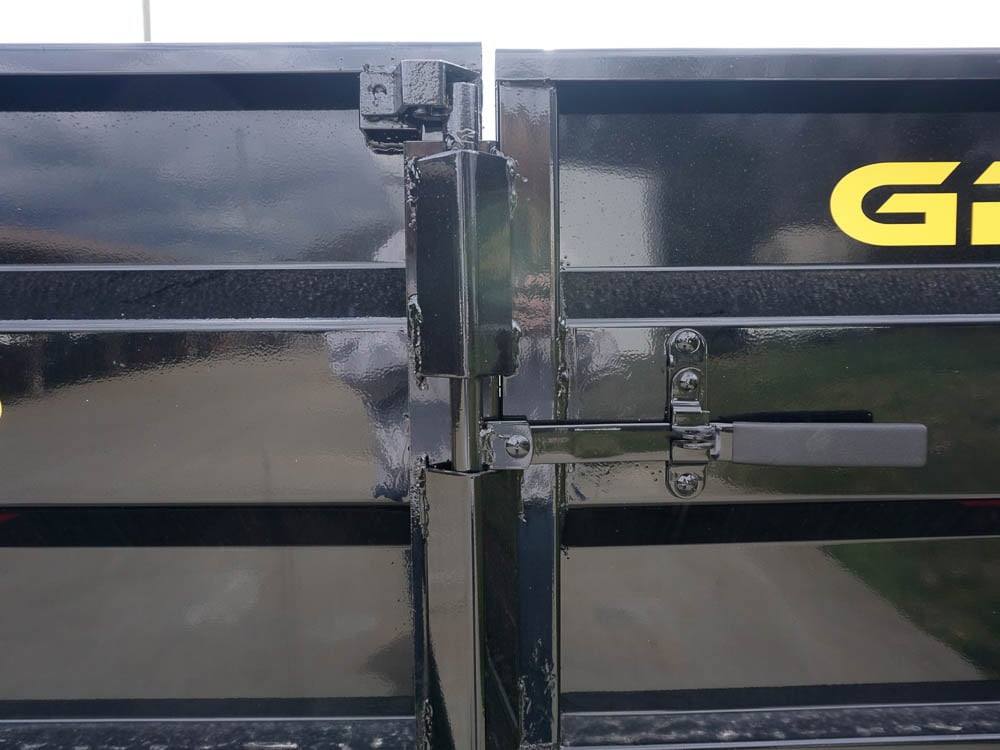

• The rear gate is a 2-way combination spreader/barn gate, providing flexibility in unloading materials.

• The axles are tandem EZ lube axles with galvanized components, offering durability and low maintenance.

• The paint finish is a high gloss black powder coat, providing a protective layer and a sleek appearance.

• The suspension system features equalized leaf springs, ensuring a smooth ride even on rough terrain.

• The style of the trailer is Low-Pro, providing a lower center of gravity for improved stability during towing.

• The overall length of the trailer is 246 inches, making it ideal for transporting larger materials.

• The GVWR (Gross Vehicle Weight Rating) is 14,000 pounds, allowing for heavy loads without compromising safety.

• The GAWR (Gross Axle Weight Rating) is 7000 pounds, ensuring that each axle can handle substantial weight.

• The curb weight of the trailer is 4855 pounds, providing a sturdy yet manageable weight for towing.

• The tongue is constructed from 2″ x 5″ tube steel, offering enhanced strength and durability.

• The payload capacity is 9145 pounds, enabling the transport of substantial amounts of materials.

• The estimated tongue weight is 580 pounds, contributing to the trailer’s overall stability during transport.

• The dump capacity is 10,000 pounds, making the trailer suitable for handling large and heavy dumping tasks.
